Macro and Micro Solar Energy Solutions
SacTec Solar’s Macro and Micro product series provides sustainable alternative solar energy solutions for remote, off-grid, life critical, and emergency applications . Our turnkey, ISO-containerized Macro product series minimize the ever increasing costs associated with the transport and deployment of fossil fuel by governmental and non-governmental agencies such as the DOD, DHS, and FEMA . Our ruggedized hybrid energy power systems are designed to meet high reliability standards for maximum energy output especially in extreme and harsh off-grid environments . Our fully integrated solar energy products are more reliable and less expensive than the conventional fossil fuel or diesel generated energy solutions . SacTec Solar offers highly efficient and cost effective alternative energy solutions.
Macro Solar Panels
SunMax Series

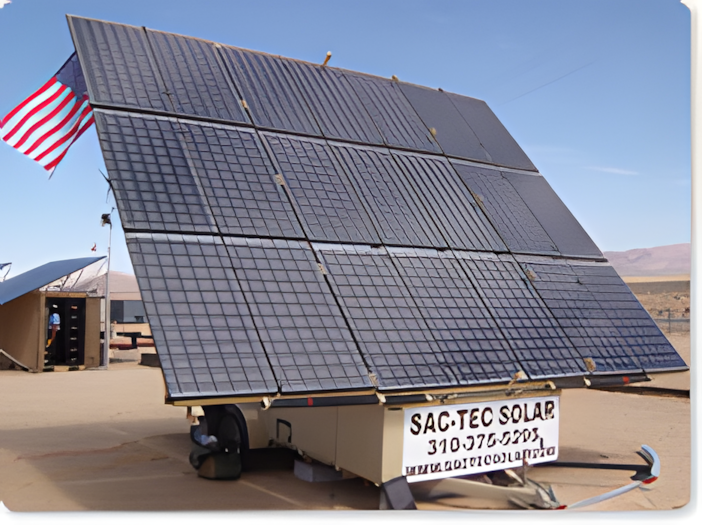

SunMax Trailer
Mobile Multi AXIS SunTracking Solar Power Trailer
SunMax Trailer 5000: Rugged Hybrid Power Solution with Solar, Wind, Battery, and Diesel Integration
The Sactec Solar SunMax Trailer 5000 is a mobile, containerized hybrid power solution combining a solar, wind, battery, and diesel generated power system which is incorporated onto a ruggedized MIL-STD trailer. The high reliability and adaptability of the system design allows for immediately deployment anywhere. The system is powered by a 4,725 Watt Solar Array, which in combination with its battery banks, inverter electronics, and a back-up diesel generator, provides up to 23.5 KWh per hour of energy with charging currents up to a 160 Max Amps DC . This compact and lightweight trailer utilizes 21 high efficiency monocrystalline panels, which feeds a flooded sealed battery bank system that stores 1344 A/Hr at 24V for delivering a pure sine wave having either a single or triple phase 120/240 VAC output.
Due to the robust electrical and mechanical engineering utilizing the most advanced photovoltaic subsystems and controls, this mobile solar trailer achieves the highest solar efficiency of operation with proven reliability . Like all SacTec Solar Products, the SunMax Trailer 5000 comes with an extended five year warranty. The system specifications contain the following:
- Total Solar Array Wattage is 4,724 Watts with Multi Axis tracker shelters
- 1344 A/Hr at 24 V sealed battery bank system
- 21 High efficiency monocrystalline panels
- Inverter for 4000 Watts at 120/240 Volt AC, 60 Hz, single or triple phase operation
- Maximum Power Point Tracking (MPPT) charge controller delivers power from PV and CPV array to the battery bank
- Remote battery bank monitor
- System Control Panel for Inverter
- Automatic Generator Start

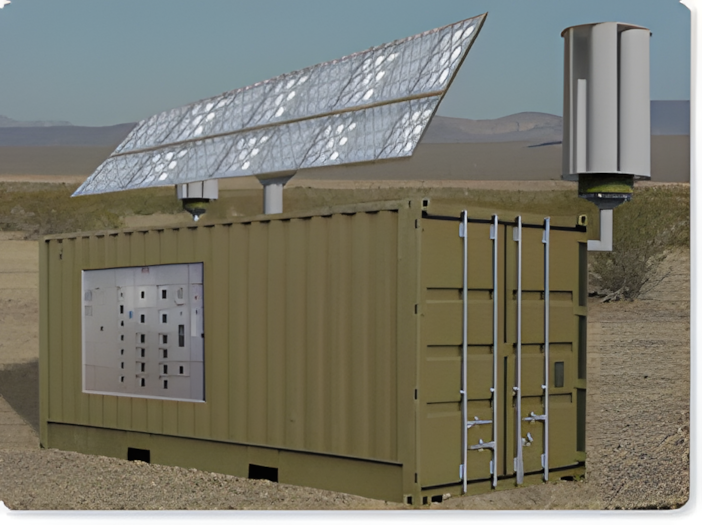

SunMax ISO Container
Mobile ISO Containerized Solar Power System
SunMax ISO Container: Versatile Hybrid Power in a Mobile, Rugged Design
The Sactec Solar SunMax ISO Container products are mobile, containerized hybrid power solution combining a solar, wind, battery, and diesel generated power system which is incorporated into a custom ISO steel framed container. The high reliability and adaptability of the system design allows for immediately deployment anywhere. The system is powered by a Watt Solar Array, which in combination with its battery banks, inverter electronics, and a back-up diesel generator, provides up to 20 KWh per hour of energy with charging currents up to a Max Amps DC. This compact and lightweight system utilizes high efficiency monocrystalline panels, which feeds a flooded sealed battery bank system that stores A/Hr at V for delivering a pure sine wave having either a single or triple phase VAC output.
Due to the robust electrical and mechanical engineering utilizing the most advanced photovoltaic subsystems and controls, the SunMax ISO Container achieves the highest solar efficiency of operation with proven reliability . Like all SacTec Solar Products, the SunMax ISO Container comes with an extended five year warranty. The system specifications contain the following:
- Watts solar array with Multi Axis tracker
- A/Hr at V sealed battery bank system
- High efficiency monocrystalline panels
- Inverter for Watts at Volt AC, Hz, single or triple phase operation
- Maximum Power Point Tracking (MPPT) charge controller delivers power from PV and CPV array to the battery bank
- Remote battery bank monitor
- System Control Panel for Inverter
SunMax HybridSkid
SunMax HybridSkid
SunMax HybridSkid: Durable Off-Grid Power with Solar, Wind, Water, and Generator Integration
The SunMax HybridSkid alternative energy system is a solar/water/wind/and electric hybrid power station configured on several platforms including skids, shelters, and ground locations. The system is a ruggedized system ideal for remote, off-grid environments with or without skids. The SunMax HybridSkid is a self-contained standalone power station and includes hydro, solar panel, wind turbine and optional electrical generator components. The system is configured in a skid based container designed for efficient and cost-effective transport to remote regions. The station is engineered as a hybrid renewable system with a generator backup.
SunMax Hybrid Features:
- Ruggedized system for off-grid environments
- Plug-and-Play hybrid modular power system
- Provides reliable renewable hybrid power from solar panels, wind turbines, hydro, battery banks and electrical generators
- Expandable based on customer requirements
- Provides power and climate controlled interior configurations
- System utilized as micro grid power source, water/shower units, and operational centers
- System configured for easy shipment in standard freight containers .
SunMax eGrid
SunMax eGrid
SunMax eGrid: Modular Energy Storage for Smart Grids and Off-Grid Applications
The SunMax eGrid products are designed for community scale energy (e) storage in smart grid applications typically seen on a micro utility substations . The SunMax eGrid product is available from 1kWhr to 100kWhr with superior performance characteristics to any sized energy (e) systems. The eGrid is available in a fully water-tight container suitable for installation in a subterranean environment. The modular design of the eGrid system allows system capacity and voltage to be varied with a minimum of customization effort and risk. This energy storage system is designed for off-grid remote applications. The eGrid system is configured with lithium-ion storage coupled with power conditioning converter modules. Each eGrid contains Lithium Polymer battery cells. The modular design allows for simple customization by the addition or deletion of modules to meet a customer requirement. Redundancy ensures that the failure of one module will not impact the entire system. The eGrid configuration minimizes the total space required to function on a tower or platform. Each module and corresponding system is designed to ensure reliable and repeatable performance even in the event of misuse. The eGrid system is organized to ensure maximum energy storage and delivery. Separate voltage converters can be integrated into the system to provide regulated voltage. This will ensure that the loads can draw the power required. The system design can accommodate a standard rack or standalone configuration.
SunMax eGrid Features:
- Lithium Polymer cell technology up to 5,000 charge/discharge cycles at 80%
- Smart Battery System decreases damage due to misuse
- High rate cell balancing
- Ethernet, CAN, or MODBUS communications to external monitoring
- Gas Gauging and tracking of performance reporting
- Factory programmable thresholds for application settings
- Durable aluminum enclosure
- Modular power sharing on charge and discharge
- Easy plug-and-play connection of modules into any size system
- Communications port to remotely turn battery pack on and off
- Charge control built into each pack
Micro Solar Panels
SunMin Series
SunMin Thuraya
SunMin Thuraya
A Solar Powered Battery Charger System that incorporates the latest solar cell technology integrated with rechargeable battery cells for in-field applications for US government agencies and the Military . It has successfully been deployed as in-service handheld electronic systems that extend operational deployment with reduced battery replacement. The system features include:
- Solar Charge Regulator
- Battery thermal regulation
- Charge chip thermal regulation
- Charge control and regulation for circuitry
- Batteries with Protection circuitry
- Brght white LED’s indicate solar charging, external charge termination, and doubles as battery charge level indicator
- DC jack port allows for external charge to phone using standard adaptor

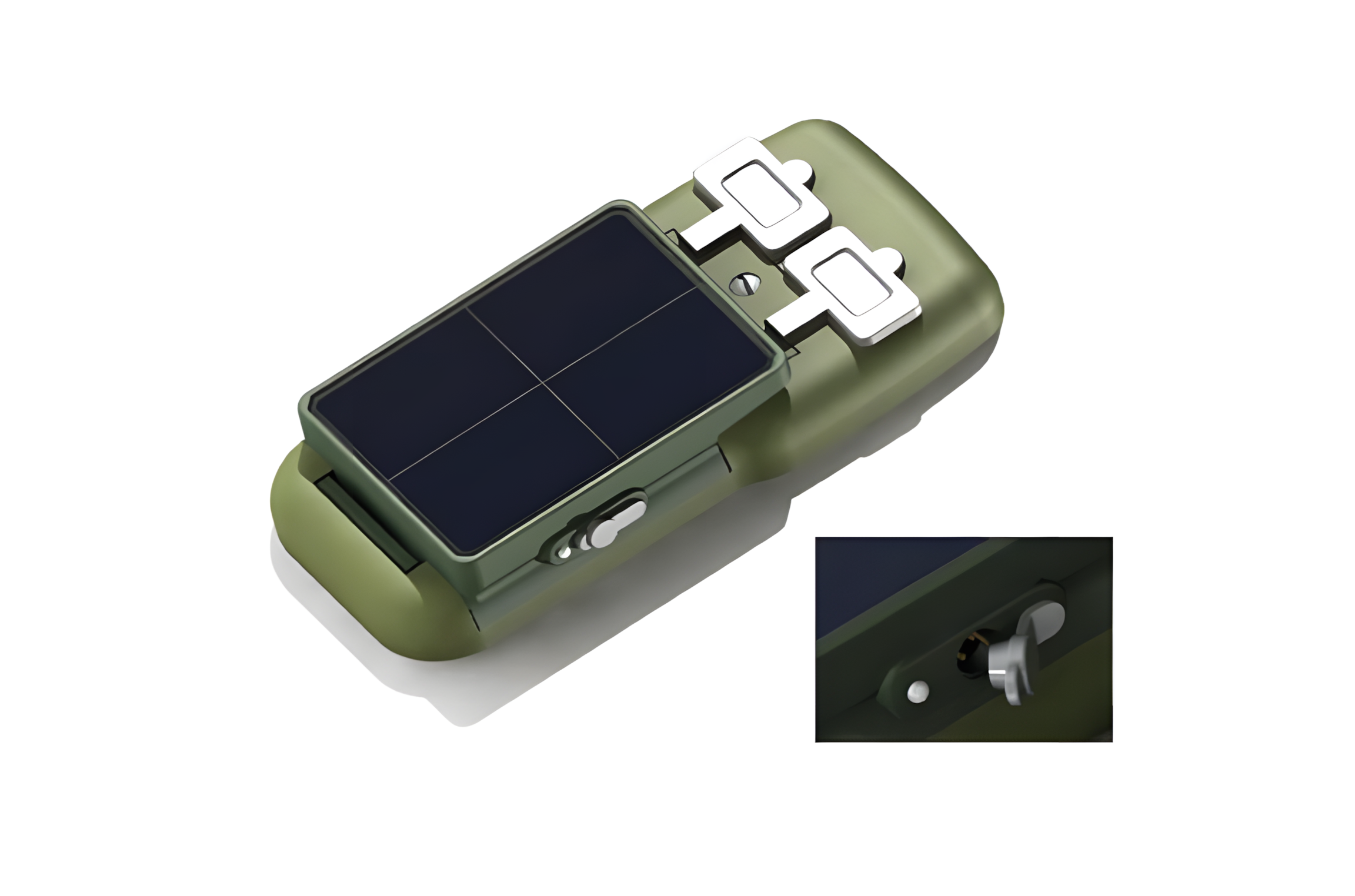

SunMin DAGR
SunMin DAGR
DAGR Solar Battery Pack System features include:
- Self contained portable rechargable power pack with integrated power conditioning, regulating power path management, and charging circuitry
- Input voltage range 6V to 60V DC (Option for AC or DC polarity sensitive)
- Output 5.4V DC, 800 ma
- Battery, Lithium Polymer, 4.2V, 2500 mah
- Maximum charge rate of 1100 mah
- 4.6 Volt solar array and direct solar drive enables operation without a battery
- Low loss solar charge regulatory circuitry
- Option for USB input
SunMin PwrPak
SunMin PwrPak
A mobile space grade triple-junction gallium arsenide solar panel array power pack utilizing the sun for the charging and recharging for devices in off-grid environments . Generates over 5 watts of power in full sunlight to recharge various devices for in field applications. The SunMin PwrPak is ruggedized, durable, lightweight, and weather resistant . It is designed with a heavy duty case made of glass filled ABS material to withstand extreme environments for years of in-field applications. It includes a push button control and a 3 color LED array, which indicates the status of the battery charging function . In addition, a white LED (easily viewed in the sunlight) indicates if the device is charging. Also, aluminum carabines for attachment functions are included for in-field backpacks and vehicles .
- A versatile, mobile, space/military grade triple-junction gallium arsenide solar panel array power pack
- DC charge input at 12V DC input
- Includes an internal lithium polymer battery backup at 2200 mAh
- Charge and Recharge at 1.2 Amp output for a quick charge
- Cover made of ruggedized and weather resistant high impact plastics to protect the device externally and internally
- Soft rubber sleeve seals the critical components for added protection
- Push button control and colored and white LED indicators for charging status
- Solar panel produces over 5 watts with an efficiency rate of over 40%
- Device available in both mil-spec and commercial versions

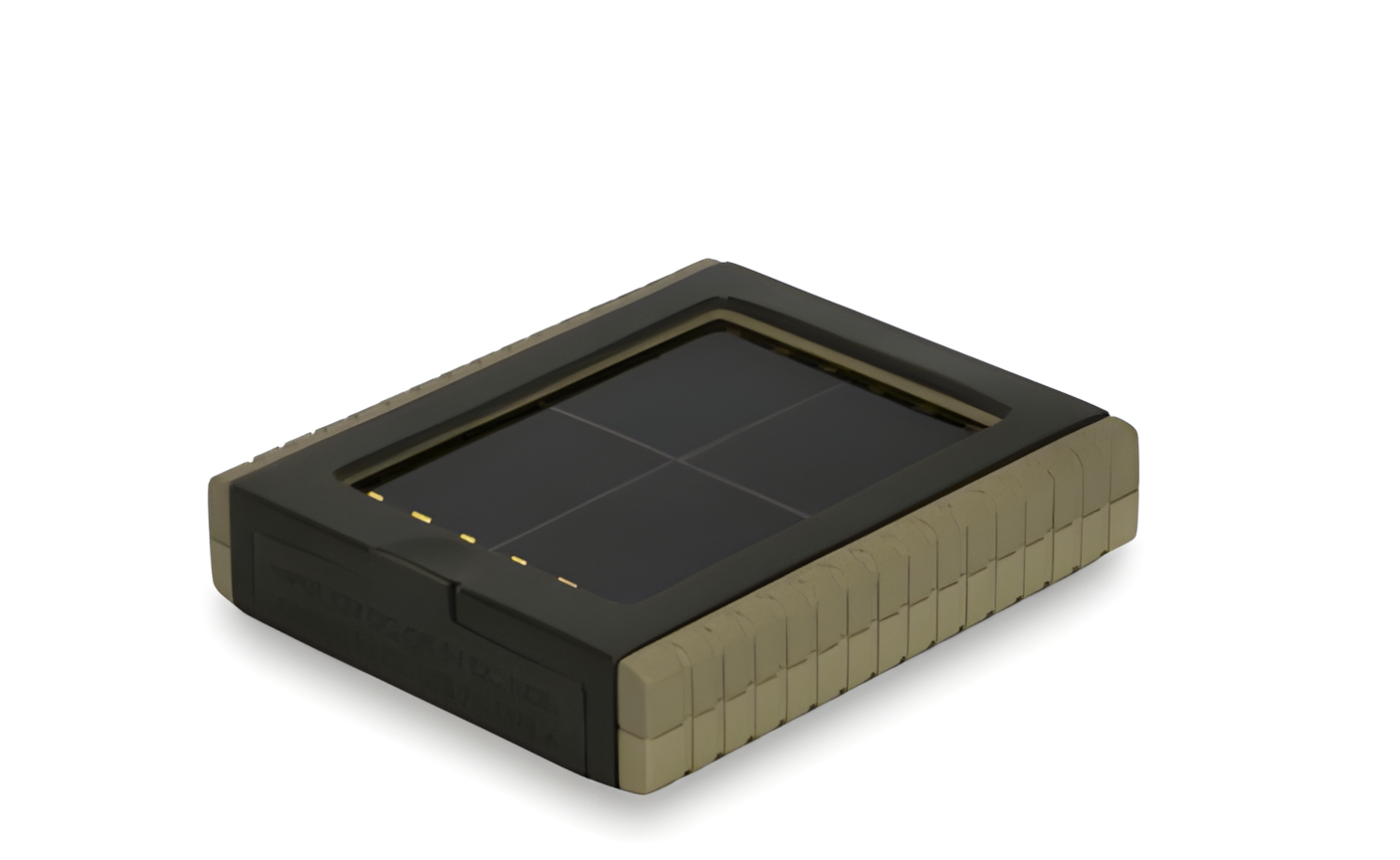

SunMin SolPak
SunMin SolPak
A mobile space grade triple-junction gallium arsenide solar panel array power pack utilizing the sun for the charging and recharging for devices in off-grid environments . Generates over 5 watts of power in full sunlight to recharge various devices for in field applications. The SunMin PwrPak is ruggedized, durable, lightweight, and weather resistant . It is designed with a heavy duty case made of glass filled ABS material to withstand extreme environments for years of in-field applications. It includes a push button control and a 3 color LED array which indicates the status of the battery charging function . In addition, a white LED (easily viewed in the sunlight) indicates if the device is charging. Also, aluminum carabines for attachment functions are included for in-field backpacks and vehicles.
